| Manufacturer Part Number : |
LTC2856HDD-1#PBF |
| Our Part Number : |
IC-LTC2856HDD-1#PBF |
| Manufacturer : |
Linear Technology |
| Description : |
IC TXRX RS485/RS422 8-DFN |
| Packaging : |
Tube |
| Series : |
- |
| Part Status : |
Active |
| Switch Circuit : |
Transceiver |
| Multiplexer/Demultiplexer Circuit : |
RS422, RS485 |
| Number of Circuits : |
- |
| On-State Resistance (Max) : |
Half |
| Channel-to-Channel Matching (ΔRon) : |
25mV |
| Voltage - Supply, Single (V+) : |
4.5 V ~ 5.5 V |
| Voltage - Supply, Dual (V±) : |
4.5 V ~ 5.5 V |
| Switch Time (Ton, Toff) (Max) : |
- |
| -3db Bandwidth : |
- |
| Charge Injection : |
- |
| Channel Capacitance (CS(off), CD(off)) : |
- |
| Current - Leakage (IS(off)) (Max) : |
20Mbps |
| Crosstalk : |
Surface Mount |
| Operating Temperature : |
-40°C ~ 125°C |

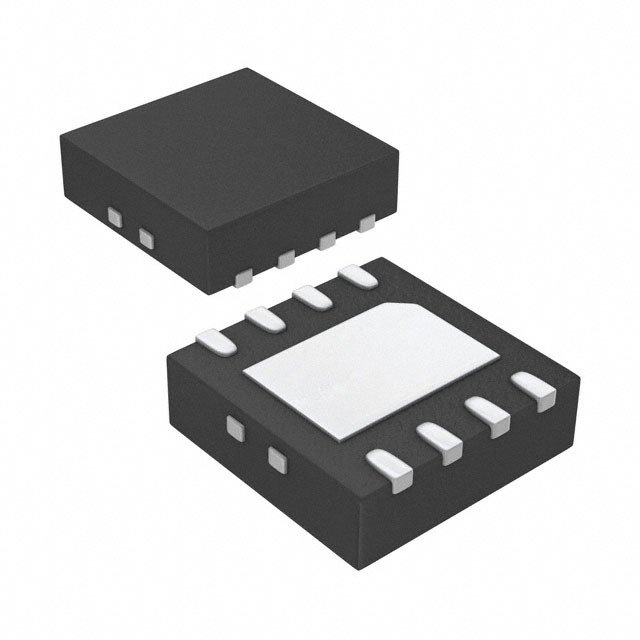

| Package / Case : |
8-WFDFN Exposed Pad |
| Supplier Device Package : |
8-DFN (3x3) |
| Category : |
Drivers, Receivers, Transceivers IC |
| Other Part Number : |
LTC2856HDD-1#PBF-ND |
| Delivery Time : |
Ship within 1 day. |
| Manufacturer Production time : |
6-8 weeks |
| Weight : |
0.15329 KG |
LTC2856HDD-1#PBF.pdf
