| Manufacturer Part Number : |
FCP190N65F |
| Our Part Number : |
IC-FCP190N65F |
| Manufacturer : |
ON Semiconductor |
| Description : |

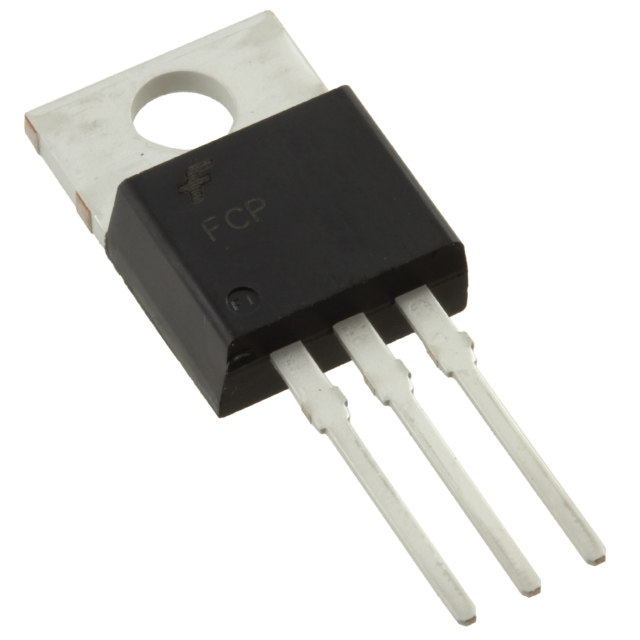

MOSFET N-CH 650V 20.6A TO220-3 |
| Packaging : |
Tube |
| Series : |
FRFET?, SuperFET? II |
| Part Status : |
Active |
| FET Type : |
N-Channel |
| Technology : |
MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) : |
650V |
| Current - Continuous Drain (Id) @ 25°C : |
20.6A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) : |
10V |
| Vgs(th) (Max) @ Id : |
5V @ 2mA |
| Gate Charge (Qg) (Max) @ Vgs : |
78nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds : |
3225pF @ 25V |
| Vgs (Max) : |
±20V |
| FET Feature : |
- |
| Power Dissipation (Max) : |
208W (Tc) |
| Rds On (Max) @ Id, Vgs : |
190 mOhm @ 10A, 10V |
| Operating Temperature : |
-55°C ~ 150°C (TJ) |
| Mounting Type : |
Through Hole |
| Supplier Device Package : |
TO-220-3 |
| Package / Case : |
TO-220-3 |
| Other Part Number : |
FCP190N65F-ND |
| Delivery Time : |
Ship within 1 day. |
| Manufacturer Production time : |
6-8 weeks |
| Weight : |
0.16584 KG |
FCP190N65F.pdf
