| Manufacturer Part Number : |
VS-ST1200C20K0P |
| Our Part Number : |
IC-VS-ST1200C20K0P |
| Manufacturer : |
Vishay Semiconductor Diodes Division |
| Description : |
SCR 2000V 3080A K-PUK |
| Packaging : |
Bulk |
| Series : |
- |
| Part Status : |
Active |
| Voltage - Off State : |
2kV |
| Voltage - Gate Trigger (Vgt) (Max) : |
3V |
| Current - Gate Trigger (Igt) (Max) : |
200mA |
| Voltage - On State (Vtm) (Max) : |
1.73V |
| Current - On State (It (AV)) (Max) : |
1650A |
| Current - On State (It (RMS)) (Max) : |
3080A |
| Current - Hold (Ih) (Max) : |
600mA |
| Current - Off State (Max) : |
100mA |
| Current - Non Rep. Surge 50, 60Hz (Itsm) : |
25700A, 26900A |
| SCR Type : |
Standard Recovery |
| Operating Temperature : |
-40°C ~ 125°C |
| Mounting Type : |
Chassis Mount |
| Package / Case : |
TO-200AC, K-PUK, A-24 |
| Supplier Device Package : |
A-24 (K-Puk) |
| Other Part Number : |
VS-ST1200C20K0P-ND |
| Delivery Time : |
Ship within 1 day. |
| Manufacturer Production time : |
6-8 weeks |
| Weight : |
0.2220 KG |

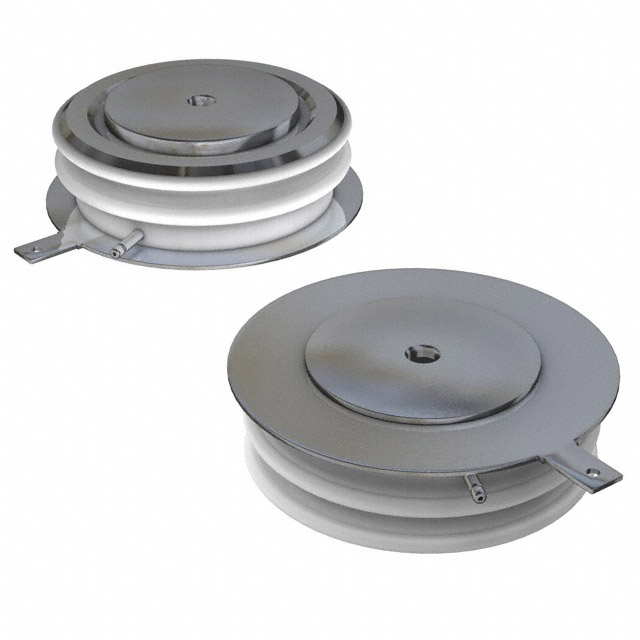

3bK.jpg "VS-ST1200C20K0P photo")
VS-ST1200C20K0P.pdf
