| Manufacturer Part Number : |
DSC7003R0L |
| Our Part Number : |
IC-DSC7003R0L |
| Manufacturer : |
Panasonic Electronic Components |
| Description : |
Transistor NPN 50V 1A MINIP3 |
| Packaging : |
Tape & Reel (TR) |
| Series : |
- |
| Part Status : |
Active |
| Transistor Type : |
NPN |
| Current - Collector (Ic) (Max) : |
1A |
| Voltage - Collector Emitter Breakdown (Max) : |
50V |
| Vce Saturation (Max) @ Ib, Ic : |
400mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) : |
100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce : |
120 @ 500mA, 10V |
| Power - Max : |
1W |
| Frequency - Transition : |
170MHz |
| Operating Temperature : |
150°C (TJ) |
| Mounting Type : |
Surface Mount |

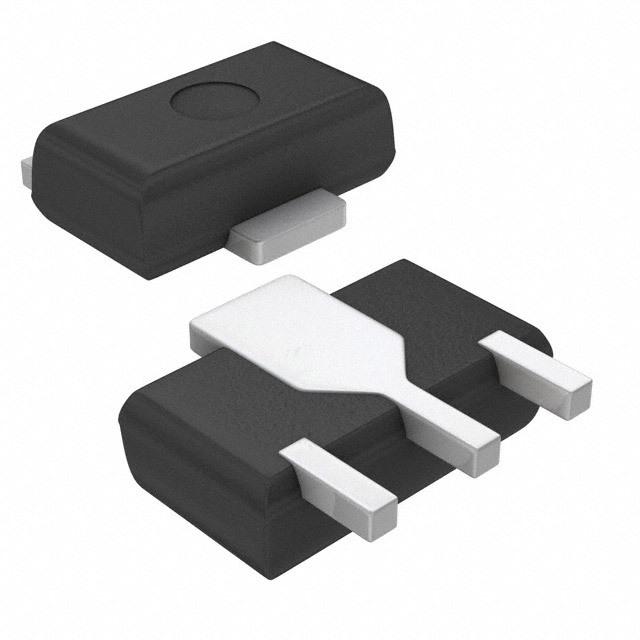

| Package / Case : |
TO-243AA |
| Supplier Device Package : |
MiniP3-F2-B |
| Other Part Number : |
DSC7003R0LTR-ND |
| Delivery Time : |
Ship within 1 day. |
| Manufacturer Production time : |
6-8 weeks |
| Weight : |
0.10479 KG |
